MVT-9 Trouble Shooting

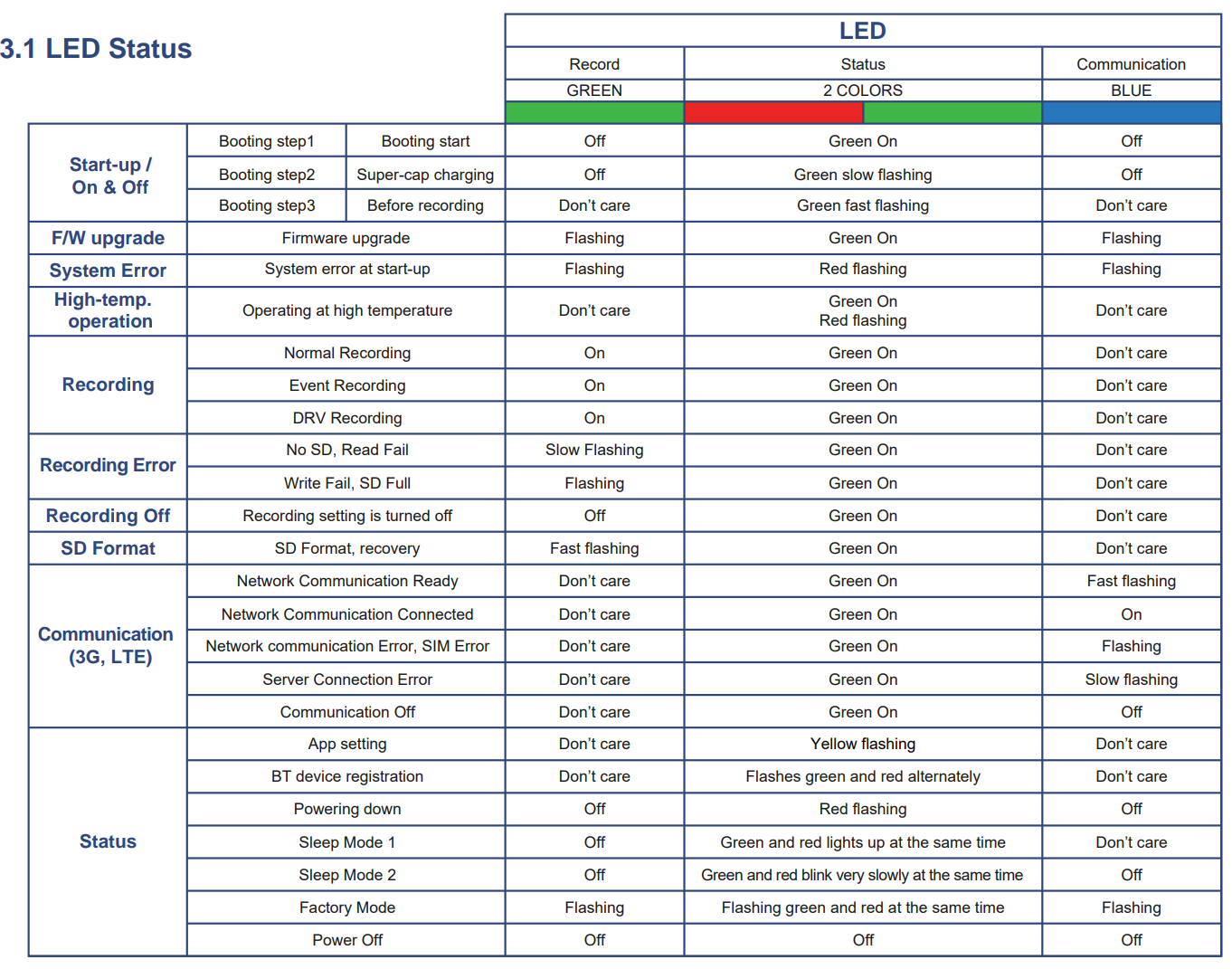

LED Status
The MVT-9 system is equipped with three status LEDs above the record button.
In normal operation, the LEDs will display solid Green - Green - Blue from left to right.
Audio Alerts & Tones
DSM
Distraction
8021 Distraction Tone 1
8022 Distraction Tone 2
8023 Distraction English
8031 Distraction repeat within 30sec
Drowsiness
8001 Drowsiness Tone 1
8002 Drowsiness Tone 2
8003 Drowsiness English
8011 Drowsiness repeat within 30sec
Yawning
8041 Yawning Tone 1
8042 Yawning Tone 2
8043 Yawning English
Phone Usage
8051 Phone Tone 1
8052 Phone Tone 2
8053 Phone English
Smoking
8061 Smoking Tone 1
8062 Smoking Tone 2
8063 Smoking English
No Seatbelt
8071 Seatbelt Tone 1
8072 Seatbelt Tone 2
8073 Seatbelt English
Face
8081 Face ID Detect
8091 Face Vanish
5011 verify your ID
ADAS
FCW
9001 FCW Tone 1
9002 FCW Tone 2
9003 FCW Tone 3
9004 FCW English
HMW
9201 HMW Tone 1
9202 HMW English
FPW
9031 FPW Tone 1
9032 FPW English
PCW
9061 PCW Tone 1
9062 PCW Tone 2
9063 PCW Tone 3
FVSA
9041 FVSA Tone 1
9042 FVSA English
SLR(TSR)
9071 SLR(TSR) Tone 1
LDW
9151 LDW Tone 1
9152 LDW Tone 2
9153 LDW English
FREQ_LC
9151 LC Tone 1
9152 LC Tone 2
9301 LC English
ETC
REC BTN
9801 REC_BTN Tone 1
9802 REC_BTN English
CAM BLK
9060 CAM_BLK Tone 1
GSensor
9902 G_Sensor Tone 1
Settings
1100 Configuration Change English
1101 Face ID Change English
5021 Unregistered driver
5041 Certified driver
5052 Unregistered driver
Event
9051 Event Tone 1
9052 Event English
